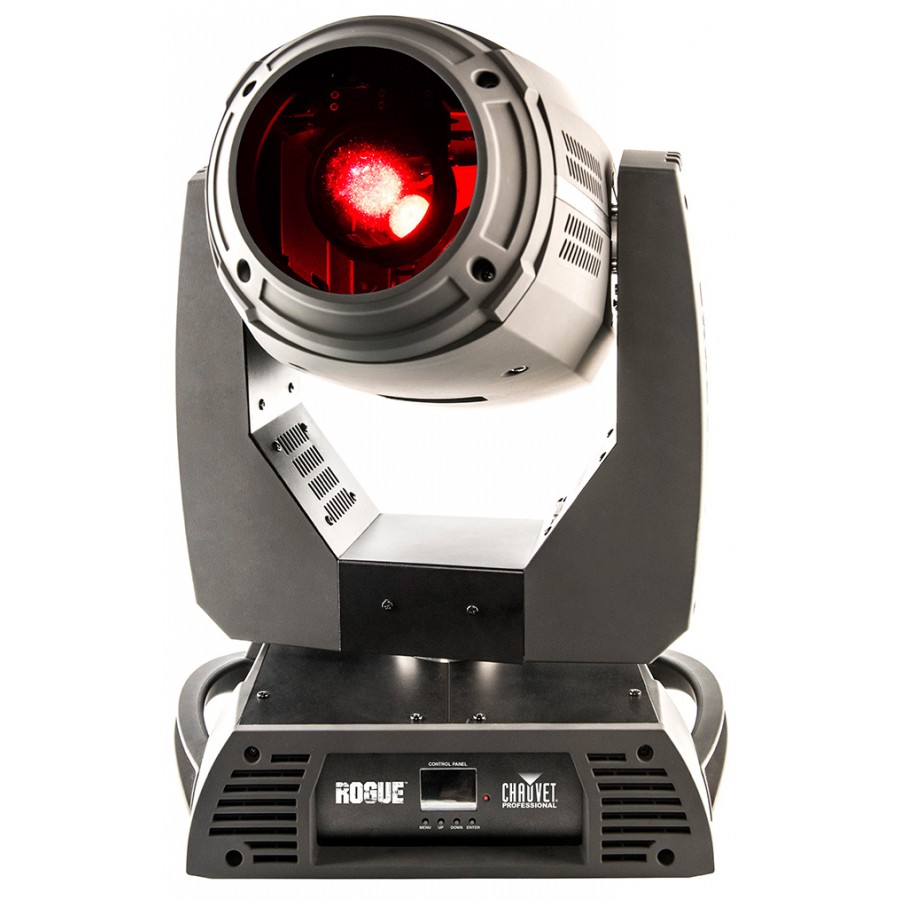

Chauvet ROgue RH1 Hybrid



Chauvet Rogue RH1 Hybrid

Rogue RH1 Hybrid beam and spot possesses an unrivaled optical system with 8-facet and 6-facet prisms that are completely layerable and controllable. Powered by a 330 W Osram Sirius lamp, Rogue RH1 Hybrid delivers an ultra-intense output of 111,000 lux @ 15 m with tight beam angles of 2.5º – 8° in Beam mode and a zoom range of 5 – 19° in Spot mode and 18° – 38° in Wash mode. Indexing and static scrolling gobo wheels and a 13-hue color wheel add to the stunning visual effects that this amazing tool can create.

  • Osram Sirius lamp, 330 W X8, 8,000 K, 1,500 hours life expectancy

  • 3- and 5-pin DMX input/output connections

  • Fast, smooth, and precise pan and tilt operation

  • 111,000 lux at 15 m in beam mode

  • Omega mounting bracket, fits all Rogue, Next, and Legend fixtures

  • Two prisms, 6-facet and 8-facet, independently controllable for and overlapable amazing gobo effects

  • Two gobo wheels, 1 rotating and 1 static wheel for dynamic projection images

  • 2.5° to 8° zoom in beam mode, 5° to 19° zoom in spot mode for variable beam size options



REQUIRED ACCESSORIES

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN Safety Cable: SC-07 Neutrik powerCON cables DMX Cables 330X8 Osram Sirius Lamp Flight case: CP2CASERH1

WHAT'S INCLUDED

Rogue RH1 Hybrid Neutrik powerCON power cord 2 Omega brackets with mounting hardware

CERTIFICATIONS / QUALIFICATIONS

CE, MET IP Rating: IP20, dry location

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 548 W, 4.53 A @ 120 V, 60 Hz Power and Current: 545 W, 2.54 A @ 208 V, 60 Hz Power and Current: 522 W, 2.30 A @ 230 V, 50 Hz

CONTROL

Control Protocol: DMX DMX Channels: 20 or 25 Modes/Personalities: 2 personalities

CONNECTIONS

Power Connection: Edison (Local) plug to Neutrik powerCON Power Input: Neutrik powerCON Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m)

CONSTRUCTION / PHYSICAL

Dimensions: 16.1 x 12.9 x 25.8 in (409 x 327 x 638 mm) Weight: 55.2 lb (25.1 kg) Exterior Color: Black Housing Material: High-impact flame-retardant polymer

DYNAMIC EFFECTS

Pan and Tilt: 540°/260° Pan and Tilt Ranges: 180°, 360°, 540°pan/90°, 180°, 260° tilt Colors: 13 + white, split colors, continuous scroll at variable speeds Gobos (1): 13 + open (13 metal), continuous scroll at variable speeds Gobos (2): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds Gobo Size: Gobo Wheel 2 (rotating glass): 15.6 mm (outside), 13.4 mm (image), 1.1 mm (max. thickness) Dimmer: Motorized Shutter/Strobe: Motorized Zoom: Motorized Focus: Motorized Frost: Motorized Prism (1): 6 Facets, motorized, rotating Prism (2): 8 Facets, motorized, rotating Move in Black: Yes Dim Modes: 2

  • Lumens – Source: 12,500

  • Lumens – Output: 9,500

  • Illuminance (5°): 112,200 lux @ 5 m

  • Illuminance (18°): 5,120 lux @ 5 m

  • Illuminance (19°): 8,230 lux @ 5 m

  • Illuminance (38°): 925 lux @ 5 m

  • Illuminance (2.5°): 111,000 lux @ 15 m

  • Illuminance (8°): 7,320 lux @ 15 m

SPECIFICATIONS

OPTICAL

  • Light Source: Osram Sirius 330 W X8 lamp, 8000 K, 1,500 hours life expectancy

  • Color Temperature (at full): 6655 K Beam Angle: 3° to 10° (Spot mode)

  • Field Angle: 5° to 19° (Spot mode)

  • Beam Angle: 1° to 4.5° (Beam mode)

  • Field Angle: 2.5° to 8° (Beam mode)

  • Beam Angle: 10° to 20° (Wash mode)

  • Field Angle: 18° to 38° (Wash mode)

  • Zoom Angle (Spot mode): 5° to 19°

  • Zoom Angle (Beam mode): 2.5° to 8°

  • Zoom Angle (Wash mode): 18° to 38°



The feature-packed ROGUE RH1 Hybrid Product Video!! Rogue™ RH1 Hybrid pushes the performance boundaries for automated moving fixtures to new heights. This hybrid beam and spot possesses an unrivaled optical system with 8-facet and 6-facet prism sets that are completely layerable and controllable.
