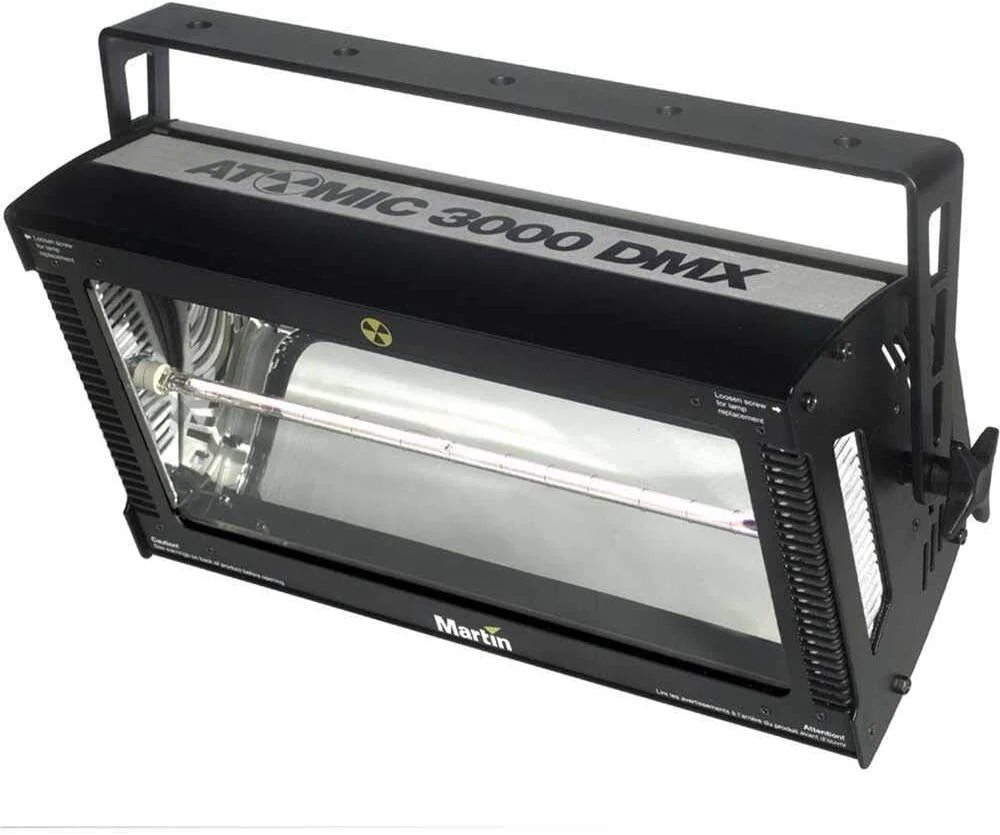

Martin Atomic 3000 DMX



The Atomic 3000 DMX is a powerful and rugged, 3000 W high-impact strobe.

SPECIFICATIONS

  • PHYSICAL Length: 425 mm (16.7 in.) without bracket

  • Width: 245 mm (9.6 in.) without bracket

  • Height: 240 mm (9.4 in.) without bracket

  • Weight: 7.5 kg (16.5 lbs.) without bracket

DYNAMIC EFFECTS

  • Variable strobe: 0 - 650 ms (50 Hz supply), or 0 - 530 ms (60 Hz supply)

  • Strobe rate: 0 - 25 flashes/second (50 Hz supply), 0 - 30 flashes/second (60 Hz supply)

  • Strobe intensity: Blackout - maximum

  • Blinder effect: Continuous with auto fade

  • Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash CONTROL AND PROGRAMMING

  • Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1

  • Stand-alone control: Via N.O. or N.C. SPST switch

  • Stand-alone options: Selectable flash rate or blinder effect

  • Setting and addressing: DIP switch

  • DMX channels: 1, 3, and 4 channel modes

  • Receiver: RS-485DMX compliance: USITT DMX512/1990

  • LAMP Type: Xenon discharge

  • Approved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power)CONSTRUCTION

  • Housing: Steel

  • Color: Black

  • Finish: Electrostatic powder-coated

  • INSTALLATION Minimum clearance around fan and air vents: 0.1 m (0.4 ft.)

  • Mounting points: Five 12 mm (0.5 in.) holes in mounting bracket

  • Orientation: Any

  • Minimum distance to combustible materials: 0.5 m (1.7 ft.)

  • Minimum distance to illuminated surfaces: 1 m (3.3 ft.)

CONNECTIONS

  • Power connection: 1.5 m (4.9 ft.) cable tail, 14 AWG

  • DMX data in/out: 3-pin and 5-pin XLR sockets

ELECTRICAL

  • AC power (MAX-7 model): 100-120 V nominal, 50/60 HzAC power (MAX-15 model): 200-240 V nominal, 50/60 Hz

  • Power supply unit: Auto-ranging electronic switch-mode

  • Typical current consumption (MAX-15, high power mode): 8A

  • Peak current consumption: 33A

  • Main fuse (all AC power voltages): 20 AT (slow blow), 250 VAC

  • mains power cable: 14 AWG or 2.5mm2

THERMAL

  • Maximum ambient temperature (Ta max.): 40° C (104° F)

  • Minimum ambient temperature (Ta min.): 5° C (41° F)

  • Maximum lamp socket temperature: 120° C (248° F)

APPROVALS

EU safety: EN 60598-1, EN 60598-2-17EU EMC: EN 50 081-1, EN 50 082-1 - US safety: ANSI/UL 1573 -

Canadian safety: CSA C22.2 No. 166
